Mod 7 Hog Saddle by Shadowtech

Product Description

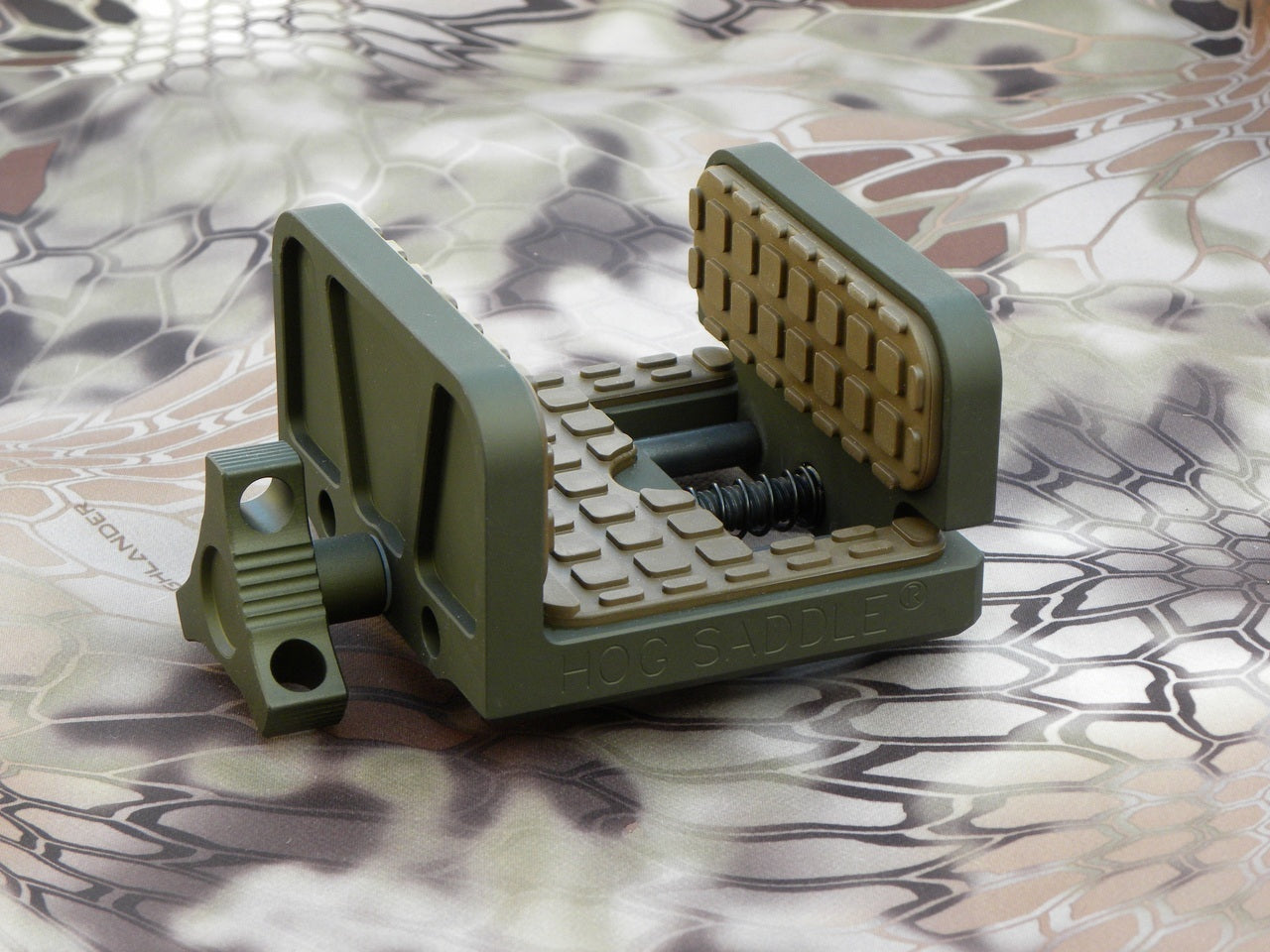

MOD7 HOG Saddle

NSN 1005-01-616-2719

This is our latest model HOG Saddle with some improvements from the original design. The MOD7 is currently a standard issue item in the US Marine Corps and other various Special Opperations Units.



List of improvements:

1.  Opens 1/4" wider than original model.   (2 11/16" Open, 1 1/2" Closed)
2.  Incorporates a retention button screw to prevent unintentional disassembly in the field
3.  Weighs 15.8 ounces
4.  Added cut-outs to the base of the HOG Saddle. These narrow slots better integrate with tripod heads or QR plates that have anti-rotation video pins.

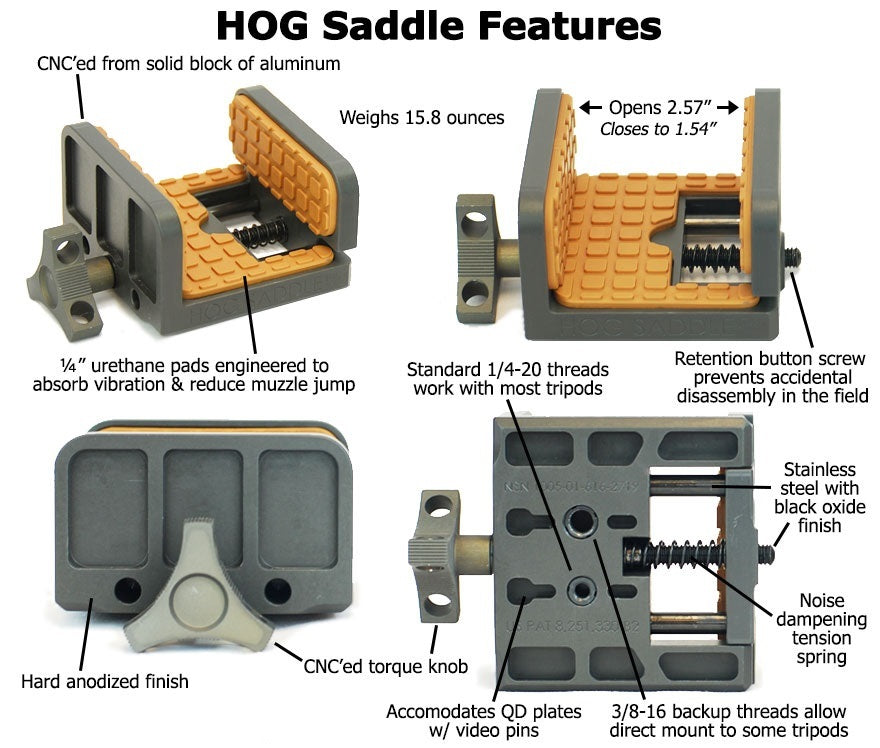

MOD7 HOG Saddle Specs:

• CNC machined from a solid block of aluminum
• Black oxide stainless steel bolt and guide rods
• Hard anodized finish (a resilient surface which serves as an excellent base coat for custom camouflage paint)
• 1/4-20 stainless steel mounting threads and 3/8-16 back up threads
• CNC machined torque knob assembly with retention button screw to prevent disassembly in the field (opens 1/4in wider than previous model)
• Stainless steel noise dampening tension spring
• 1/4 inch thick, recessed urethane pads specifically engineered to absorb rifle recoil and reduce muzzle jump

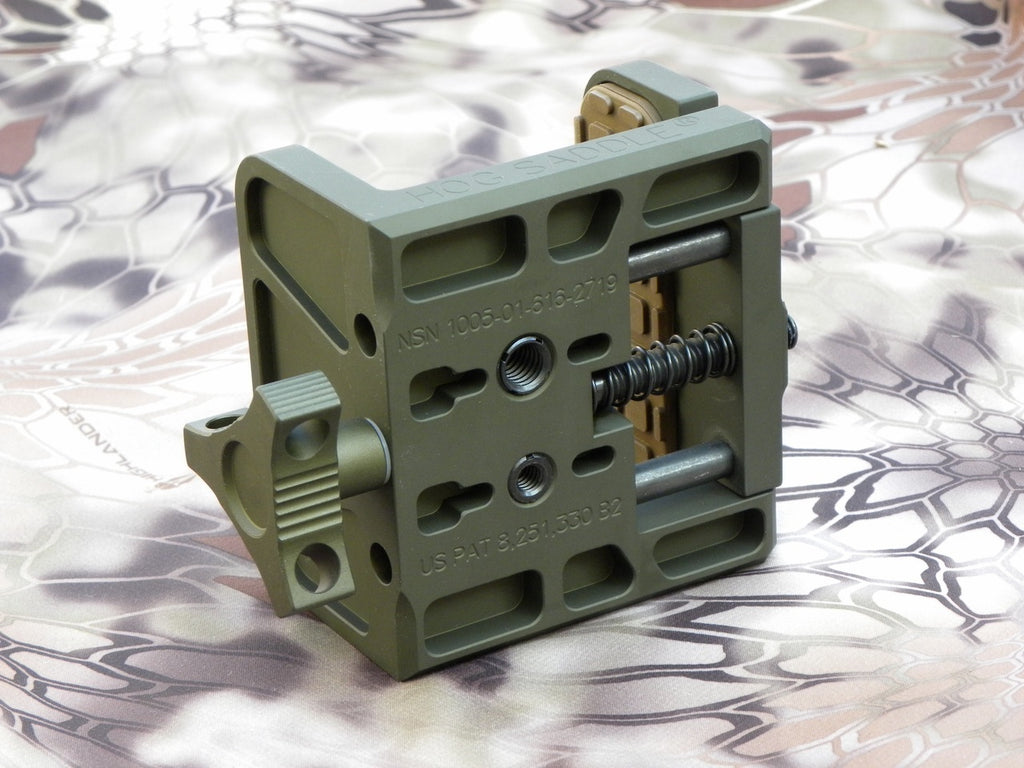

• Anti-rotation slots to accept tripod QD plates that have video pins
• Superior resistance to corrosion
• Weight: 15.8oz
